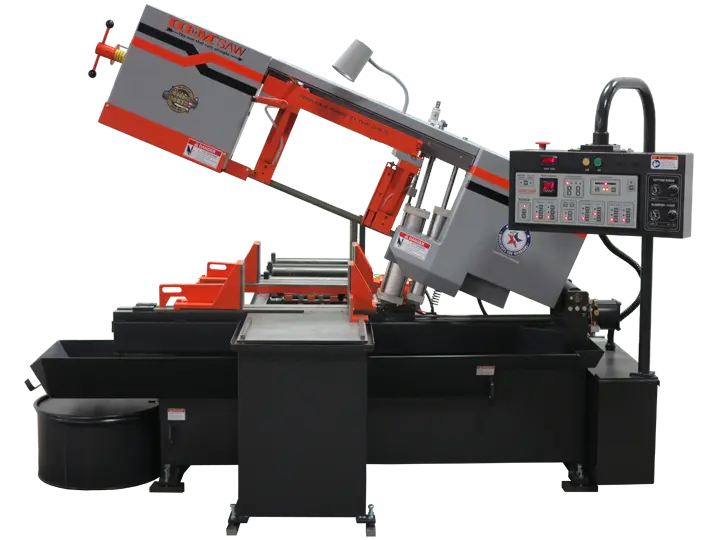

Horizontal Pivot, Heavy-Duty, Metal-Cutting Production Band Saw
Have one to sell?
ConditionNew
New
Horizontal Pivot, Heavy-Duty, Metal-Cutting Production Band Saw
Horizontal Pivot: H105A-4
Capacity: 16″ W x 14″ H
Bar-feed: 0-24″ (Stroke Air – 4 Index)
Blade: 15’0″ x 1.25″ x .042″
Motor: 7.5 HP
Operation: Automatic
STANDARD FEATURES
2 Hold Down Fixtures
24″ Solid Discharge Table – Bolts to Saw
Adjustable Clamping Force
Adjustable Cutting Force
Adjustable Feed Rate
Adjustable Main & Feed Vise
Blade Brush
Broken Blade Indicator
Carbide Blade Guides
Cut Watcher® System
Easy View Console – All Function Control
Flood Coolant System w/ Wash-Down Hose
Manual Adjustable Guide Arm
Manual Blade Tension
Out of Stock Indicator
Push Button Blade Speed w/ LED Readout
Safety Guards
Vertical Alignment Roller on Feed
220V/440V/3PH Electrical Motor Requirement
85 PSI, 4-6 CFM Minimum Air Requirement (Equipped w/ Air Filter/Lubricator)
OPTIONAL FEATURES
10′ Idle Roller Stock Table
3rd Holding Vise on Feed
5′ Idle Roller Stock Table
Air Powered Blade Tension
Chip Auger System
Interlocking Vise Jaws
Outboard Powered Vise on Discharge
Reduced Capacity Top Clamp – Feed Vise
Reduced Capacity Top Clamp – Main Vise
Spray Mist Lubrication
Light Clamping Pressure
Single-Phase Voltage
