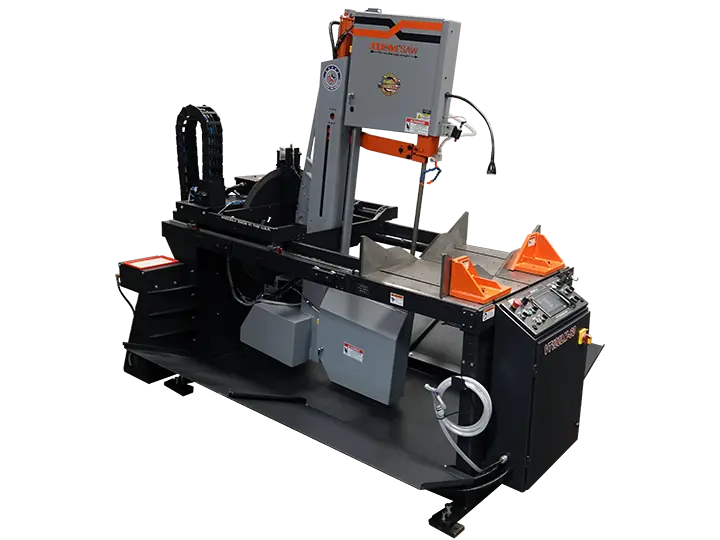

HEM Vertical : VT100LM-60
Have one to sell?
ConditionNew
New
HEM Vertical : VT100LM-60
Vertical: VT100LM-60
Capacity: 18″ W x 20.75″ H
Miter: 18″ W x 14.25″ left @ 45°
Miter: 18″ W x 14″ right @ 45°
Miter: 18″ W x 9.75″ left @ 60°
Miter: 18″ W x 6.75″ right @ 60°
Blade: 15’6″ x 1.25″ x .042″
Can't: 4° Removable
Motor: 5 HP
Operation: Semi Automatic
STANDARD FEATURES
Adjustable Clamping Force
Adjustable Cutting Force
Adjustable Feed Rate
Air Powered Blade Tension
Blade Brush
Boltable Side Wings for Coolant Drainage
Broken Blade Indicator
Carbide Blade Guides
Flood Coolant System w/ Wash-Down Hose
Forward Cut Stop
Full Stroking Main Vise
Safety Lockout Key
Powered Guide Arm
Powered Tilt w/ Angle Readout
Safety Guards
Console Located on Front of Saw w/ 7″ Touch Screen
Powered Tilt w/ Angle Readout on Touch Screen
Variable Blade Speed w/ Readout on Touch Screen
220V/440V/3PH Electrical Motor Requirement
85 PSI, 4-6 CFM Minimum Air Requirement (Equipped w/ Air Filter/Lubricator)
OPTIONAL FEATURES
10′ Idle Roller Stock Table
10′ Roller Discharge Table
10′ Roller Load Table
2nd Main Vise
5′ Idle Roller Stock Table
5′ Roller Discharge Table
5′ Roller Load Table
Cut Watcher® System (Reduces Vert. Capacity by 1″)
Laser Light System
Pedestal Mounted Control Console
Spray Mist Lubrication
Swing-Away Top Clamp – Main Vise
12″ H Wear Plates – Non Mitered
Power Programmable Tilt from Touch Screen
Idle Rollers (Per Side)
