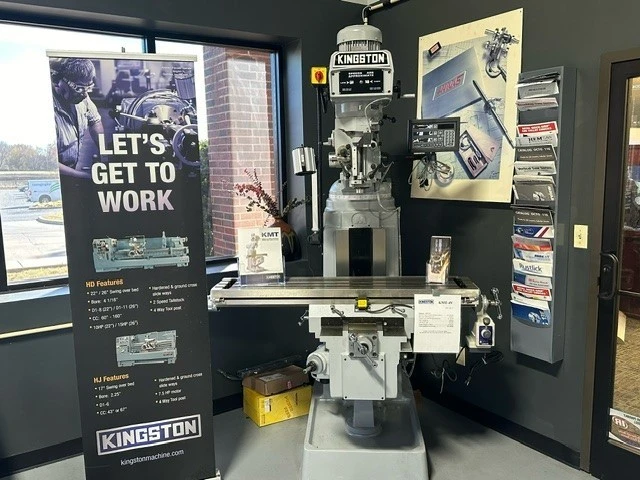

KMT-4V Knee Mill
Vertical Mills
The KMT-4V brings Kingston's commitment to quality to a precision milling machine. Turcite-B, which coats the sliding surfaces of the X- and Y-axis for optimal performance, and Meehanite casting make these mills ready to tackle all types of projects. The spindle contains a Class 7 precision bearing and a maximum runout within .0002 inches, with spindle speeds up to 4200 RPM. The knee and table ways are hardened and ground, while a heavy-duty saddle support runs the full width of the table for extra stability. The KMT-4V features a 3 HP motor and an R8 nose; Kingston's rugged design and sturdy head housing ensure this well-built machine will last for years.
| Table-W | 10" |
| Table-L | 50" |
| Travel-Long | 36" |
| Travel-Cross | 17.5" |
| Power | 3 hp |
| RPM | 4,200 RPM |
| Taper | R8 |
Capacity:
Table
10" x 50"
Travel (X x Y)
36.0" x 17.5"
Travel (Z) Quill
5.0"
Travel (Z) Knee
17.5"
Spindle Motor
3 HP
Spindle Taper
R8
Spindle Speed
60 – 4200 RPM
Spindle Power Feed Rate
0.0015"/Rev, 0.003"/Rev, 0.006"/Rev
Dimensions:
Overall Height
90.2"
Overall Length
64.6"
Overall Width
67.7"
Weight
3,300 lbs
Best Line Table Power Feed - $700
Newall 3-Axis DP700 DRO - $2,800
DRO Installation - $500
LED Work-light - $350
Freight to Timco - $1,800
