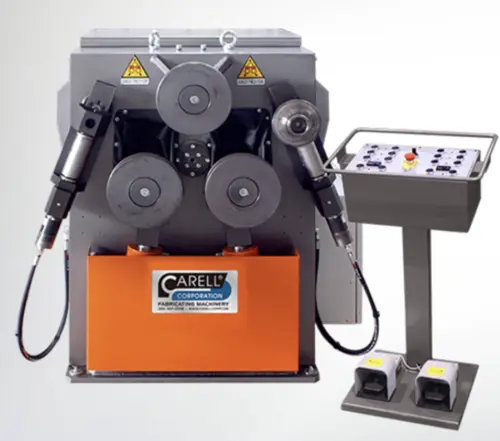

CARELL 305HV DOUBLE PINCH ANGLE ROLL

Description

CARELL's 305HV roll bending machines are available with 6 way multi-axis adjustable lateral guides, powered rotation of all three bending rolls and independent hydraulic adjustment of the lower rolls for double pre-bending. This versatile unit is ideal for rolling standard/special sections plus tube & pipe in a variety of material types. The 305HV Series Universal Telescoping Rolls are designed for bending profiles, flat bar (on flat and on edge), square bar, tees, channel as well as round bar, square & rectangular tube sections, angles leg-in, leg-out and can be setup to operate in horizontal or vertical position adding further value to your production.

Standard Features
• Rugged one-piece solid steel weldment frame
• High Strength Steel Shafts journaled in self aligning bearings for optimum performance and efficiency
• Dual LED Digital Displays monitor bending roll positions
• Double Pinch Geometry permits pre-bending of leading & trailing ends of the profile without removal from the machine
• Telescoping modular multi-component roll set specifically designed to bend standard sections including angle leg-in/out and square/rectangular tube, as well as other shapes in a variety of material types
• Tri-Directional Lateral Guides with cam rollers for correcting inherent twist when rolling angle leg-in
• Heavy duty solid gears & motor/reducer group designed for maximum torque efficiency to all rolls
• Operates in both horizontal and vertical orientations

Options
• Rolls for tubes pipes, and special profiles
• Tooling for production of half tubes
• Overhead Supports for coil production
• Compression and Tension tooling for C, & I hard way
• NC and CNC Controls with various automation levels for repetitive jobs and production of variable radius bends and parts with multiple bends
• Powered Movements on lateral material guides on models 302HV through 307HV
• LED digital displays for movements on lateral material guides
