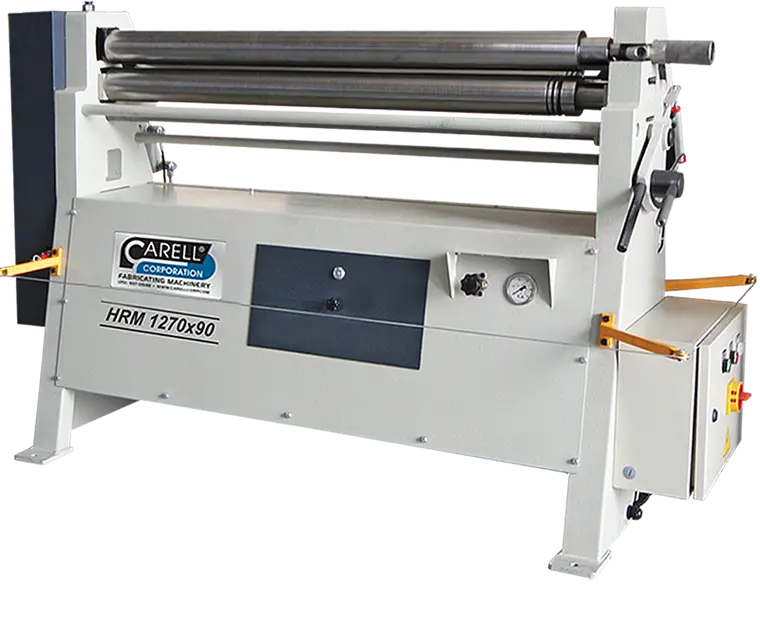

New CARELL HRM 1550 x 90 | Plate Bending Rolls including Pinch

Description

STANDARD FEATURES
• Lateral Roll is HYDRAULIC actuated from the control console with joystick controlled tilting action for rolling cones. Roll is idle in rotation and has 3 round rod grooves
• LED Readout to monitor the position of the lateral bending roller
• Induction Hardened and Polished Surfaces on all 3 rolls
• Cone Rolling Device for rolling conical shapes
• Both Upper and Pinch rolls driven by electric motor and oil bath speed reducer through NiCrMo solid stock gears
• Pinch Roll Pressure adjustment via ergonomic easy adjust cam lever
• Lateral Quick Release Top Roll with safety lock
• 24V Low voltage controls, Foot Pedal Rotation, E-Stop, Safety Trip Wires, • Instruction Manual
