New CARELL TBH Series | Plate Bending Rolls including Pinch

Description

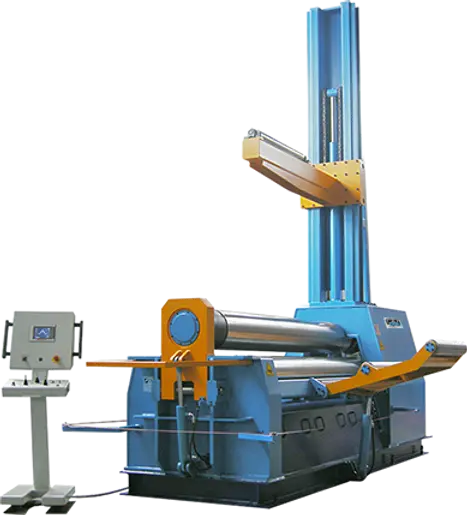

The TBH is a double pinch design plate roll with independent adjustment of the two lower rolls on inclined sliding guides. This allows to pre-bend and roll both plate edges with only one insertion (no need to remove and turn the plate). The three rolls drive assures the best plate feeding also when rolling thin plates and the large opening between the top and lower rolls increases machine flexibility. The TBH bending machines are equipped with the exclusive Parmigiani Parallelism System (PPS) for rolls parallelism control (closed ring type).
The PPS assures the max precision in rolls positioning also after several years of intensive work.
Linear sliding guides with anti-friction material (AVG System).(No maintenance; High loading and carrying capacity; Smooth and stable positioning).All rolls, mounted on spherical roller bearings, are driven by separate hydraulic motor for each roll. The TBH bending machines are equipped with the multi-bearing system that guarantees the highest reliability even for intensive productions and cone bending.

With the TBH Series we exceed your expectations.
How do we exceed your expectations? It’s simple: The all-new VBH Series was created from the belief that every feature, every innovation, must be focused on helping you grow your bottom line. This led our engineers to design the next generation of plate rolls, concentrating on four key areas of machine performance:
STRENGTH: Linear sliding guides and multiple bearing rolls support system.
POWER: High torque reduction unit for reduced number of rolling passes.
PRECISION: Digital control of the roll parallelism with proportional valves.
CONTROLS: Infinitely variable roll adjustment speeds, Infinitely variable central lower roll pinching pressure, shell calibration working modes, extended i-diagnostic system... are only some of the features that you can control directly from the operator mobile panel, just moving a finger.
