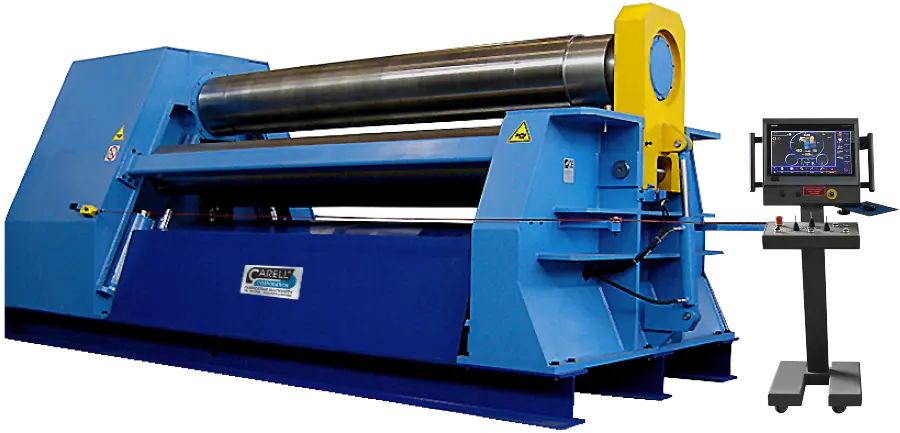

CARELL VBH Series Full Hydraulic 4 Roll Plate Roll

Description

Almost a century of forming experience and cooperation with our customers is incorporated in our VBH 4-roll plate bending rolls. The VBH is the best machine for both, cylindrical and conical bending. The main features of our VBH rolls are the greater bottom roller pinching force (for short flat ends and optimum pre-bending) and the higher drive torque (for single pass process) to boost productivity. A winning combination for those looking for performance of the highest level.

With the VBH Series we exceed your expectations.

How do we exceed your expectations? It’s simple: The all-new VBH Series was created from the belief that every feature, every innovation, must be focused on helping you grow your bottom line. This led our engineers to design the next generation of plate rolls, concentrating on four key areas of machine performance:

STRENGTH: Linear sliding guides and multiple bearing rolls support system.​
POWER: High torque reduction unit for reduced number of rolling passes.​
PRECISION: Digital control of the roll parallelism with proportional valves.
CONTROLS: Infinitely variable roll adjustment speeds, Infinitely variable central lower roll pinching pressure, shell calibration working modes, extended i-diagnostic system... are only some of the features that you can control directly from the operator mobile panel, just moving a finger.

Features:
• Full frame design for maximum rigidity and precision
• Heavy-duty and rigid frame design for maximum resistance for cone rolling
• Machine frame with linear guides for roll sliding
• Heavy-duty multi-bearing system with 4 spherical roller bearings for each roll
• Sliding supports machined with antifriction materialfor maintenance free operation
• Rigid frame construction without force transmitted to foundation
• Rolls made of high resistance steel forgings, with large diameter and light cambering
• Digital control of the rolls parallelism with proportional valves. Precision 0.1 mm (0.004”)
• Heavy-duty turning bearing support, with four anti-deflection points for maximum rigidity
• Infinitely variable pinching pressure of the central lower roll with digital pressure gauge
• Centralized control panel, light weight design for easy handling
• Wired with light-cables against electromagnetic interference
• Instantaneous brakes for rolls rotation for maximum safety factor
• Fully hydraulic drive of top and lower rolls with automatic speed compensation
