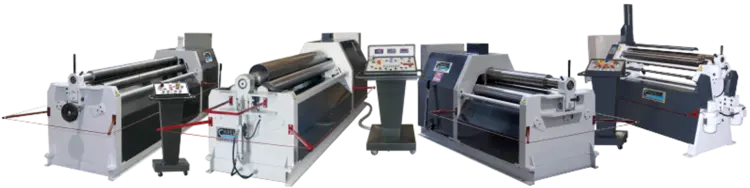

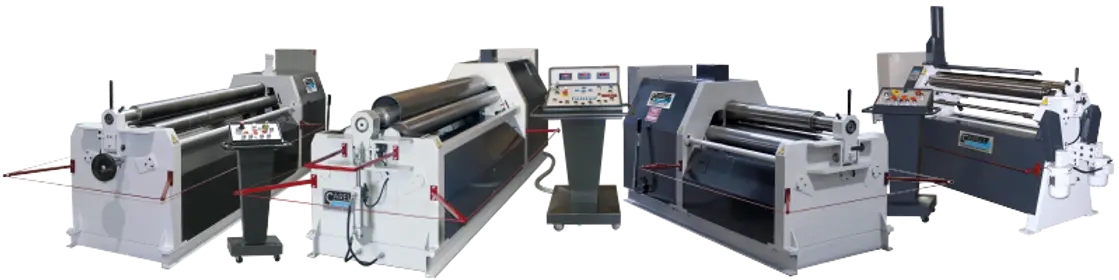

CARRELL Q-Series 4 Roll Plate Rolls

Description

Hydraulic & Mechanical: 16 GA to 5/16"Capacities - 20 Models!

CARELL’S Q-SERIES PLATE ROLLS are now available in fully hydraulic as well as electro-mechanical powered versions to match your shop requirements. QI Hydraulic machines are available with NC/CNC controls. Mechanical Q41 Series are available with programmable positioners.

STANDARD FETURES QI & Q41 SERIES 4 ROLL PLATE ROLLS:
• Top & Pinch Rolls both powered in rotation
• Bending rolls powered up/down with push button controls
• Pinch roll up/down is hydraulic on QI Models, manual or powered on Q41 Models
• Drop End Yoke is hydraulic on QI Models, manual or powered on Q41 Models
• Top roll raises upward to facilitate finished part removal
• Lateral rolls move on direct linear guides, virtually maintenance free, fewer moving parts
• All rolls are journaled in multiple tapered roller bearings with forced lubrication
• Controls in 24VAC low voltage, push button actuated on mobile operator console
• Safety surround trip wire, drop end guard and E-Stop palm buttons are standard
• Frames are single weldment design and heavily reinforced to eliminate torque stress
• NO CASTING are used on our main-frames and carry a Limited Lifetime Warranty
• Superior Brand OEM components are non-proprietary and available world wide

OPTIONAL FEATURES:
• LED Readouts with position memory
• Induction hardened rolls & polished rolls
• Special custom roll diameters, roll tapers and roll lengths
• Rolls machined for corrugated sheet or flanged blanks
• Variable rolling speeds or dual speeds
• Material handling feed tables, supports and part ejectors
• Machines designed for dedicated or custom production jobs
