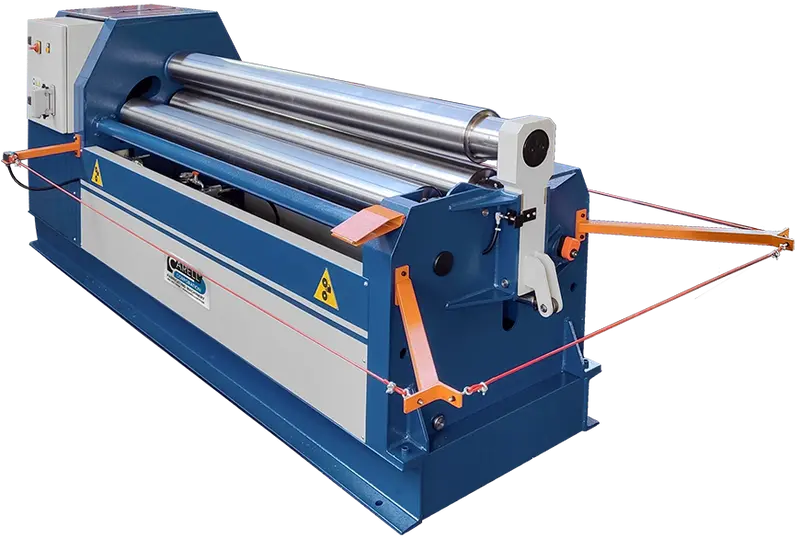

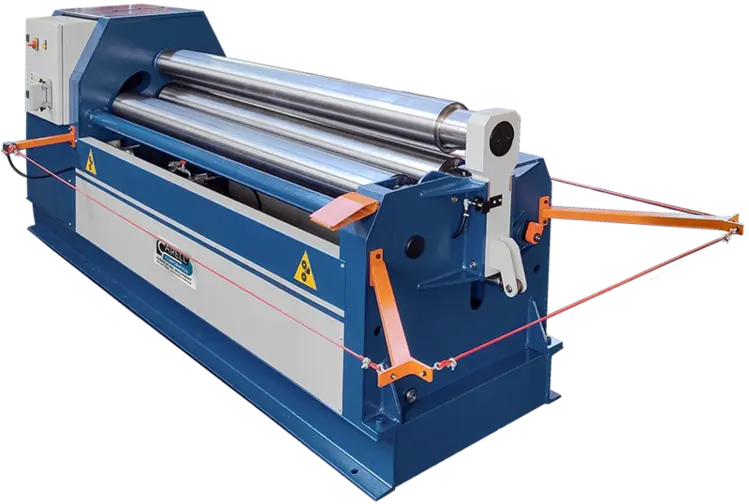

HTSI SERIES 3 ROLL HYDRAULIC INITIAL PINCH PLATE ROLLS

Description

The CARELL HTSI SERIES unit is a 3 roll, single initial pinch plate bending machine with powered adjustment of lateral bending roll and powered rotation of upper and lower pinch rolls.

STANDARD FEATURES
• Both Upper roll and Central Pinch rolls driven by electric motor and oil bath speed
reducer through NiCrMo solid stock gears
• Base in steel, electro-welded and stress relieved
• Lateral roll, idle and moving on roller bearings
• Central pinch roll pinch pressure adjustable by precision worm gear movement
• Front quick release top roll with rotation lock out safety switch
• Lateral roll movement via electric motor and heavy duty worm gear drive for precise positioning and maximum power
• Lateral bending roll and pinch roll incline for cone working
• Low voltage push button controls via mobile control console
• Multi point safety system including circumferential trip wire
• Forced central lubrication system with pump and tank
• Instruction manual
