New CARELL ROTARY COMPRESSION BENDERS | Pipe, Tube & Bar Benders

Description

Carell Corporation is proud to be a National Distributor of Pedrick Rotary Compression Benders!

Pedrick Tool & Machine Co. founded in 1875 in Philadelphia,PA, developed our line of rotary compression bending machines for shipbuilding, petro-chemical, industrial and maintenance applications worldwide using the most advanced materials and components in machine construction for bending heavy wall tube, pipe and structural sections. The line includes 12 models to serve all budgets and applications.

Bends produced on a 3D bend radius meet American Petroleum Institute (API) specifications for ovality (flattening) and wall thinning.

THE CONCEPT:The Rotary Compression Bending Principle uses a stationary forming die and a powerful wiper arm that rotates around the die which pulls the work piece around the die to create the bend. The wiper arm locks into the rotating top plate. A variety of structural, roll formed and extruded sections can also be formed using the rotary compression process saving time and money!

STANDARD EQUIPMENT: These Pedrick machines have a work surface and rotating top plate in heavy normalized steel plate mounted on a solid cast or alloy steel base frame. The bending arm is powered by an electric self braking, brushless SEW-Eurodrive right angle motor reduction unit mounted under the table. Bend cycle is controlled by a reversing contactors, motor overload protection modules and a control transformer, all which meet NEC, JIC and UL specifications. Switchgear is enclosed in a NEMA style cabinet complete with an external, Lock-Out/Tag-0ut fused disconnect. Adjustable limit switches and hand held controls are standard.

ETM SERIES
The ETM series is equipped with state of the art technologies meant to bend with or without mandrel tubes and profiles, and capable of bending both in right and left direction. The range in diameter is from 1/2 inch up to 3 inches and can make curves over 180° with top finish quality for a minimum bending radius of 3 x the tube diameter.

Thanks to our new “Digital Bend Programming Touch Screen”, these machines are extremely easy to use: it enables selection of up to 99 programs each of them with a 5-stop sequence in the bending operation with automatic adjustment for material springback. Moreover, it can also save and store each project as a repeatable program.
ETM-60HD
Request-A-Quote
BACK TO TOP
ETM-80HD
Request-A-Quote
BACK TO TOP
ETM-90HD
Request-A-Quote
BACK TO TOP
ETM-120HD
Request-A-Quote
BACK TO TOP
ETM-150HD
Request-A-Quote
BACK TO TOP
ROTARY COMPRESSION BENDERS
Request-A-Quote
BACK TO TOP

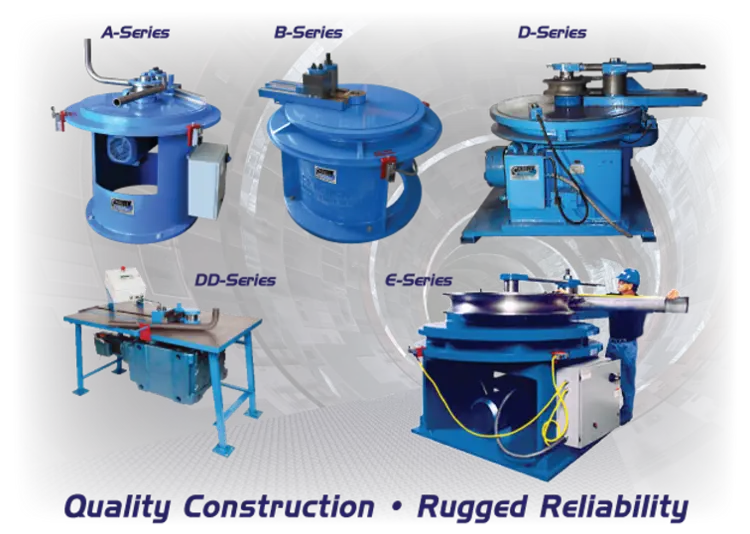

Carell Corporation is proud to be a National Distributor of Pedrick Rotary Compression Benders!
Pedrick Tool & Machine Co. founded in 1875 in Philadelphia,PA, developed our line of rotary compression bending machines for shipbuilding, petro-chemical, industrial and maintenance applications worldwide using the most advanced materials and components in machine construction for bending heavy wall tube, pipe and structural sections. The line includes 12 models to serve all budgets and applications.
Bends produced on a 3D bend radius meet American Petroleum Institute (API) specifications for ovality (flattening) and wall thinning.


THE CONCEPT:The Rotary Compression Bending Principle uses a stationary forming die and a powerful wiper arm that rotates around the die which pulls the work piece around the die to create the bend. The wiper arm locks into the rotating top plate. A variety of structural, roll formed and extruded sections can also be formed using the rotary compression process saving time and money!

STANDARD EQUIPMENT: These Pedrick machines have a work surface and rotating top plate in heavy normalized steel plate mounted on a solid cast or alloy steel base frame. The bending arm is powered by an electric self braking, brushless SEW-Eurodrive right angle motor reduction unit mounted under the table. Bend cycle is controlled by a reversing contactors, motor overload protection modules and a control transformer, all which meet NEC, JIC and UL specifications. Switchgear is enclosed in a NEMA style cabinet complete with an external, Lock-Out/Tag-0ut fused disconnect. Adjustable limit switches and hand held controls are standard.

Features: (click for pdf)
• Mechanically driven. (No hydraulics or pneumatics are used to bend pipe or tube)
• Heavy Duty Cast Iron or Steel Housing
• Helical Bevel Gear Reducer with a TEFC Motor & Brake
• Heat Treated Alloy Shafts
• Spherical Roller Bearings
• NEMA 12 Control Box Meets NEC JIC Specs
• Limit Switch For Angle Selection and Automatic Reverses

Advantages:
• Quick tool changeovers
• Adjustable limit switches
• Requires minimal maintenance
• 12 Models and Portable units available!

Options:
• Tooling is optional and quoted according to production needs
• Digital controls are optional to substitute manually adjusted limit switches
• Machine Voltages can be arranged for any country or electrical grid.
